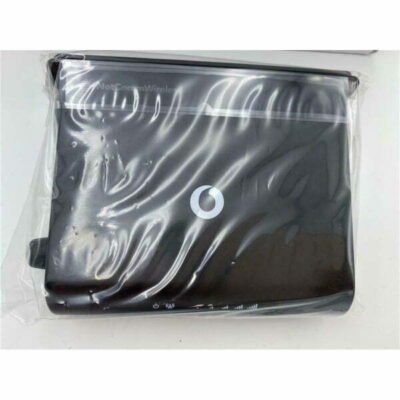

Vodafone MachineLink 3G NetComm Wireless Cellular Modem – 5H32401 rev H

Name: LQ Way
Price range: $

$360.00

Note: power supply / antenna is not included!

1 in stock

SKU: 5H32401 rev H Category: Industrial Supplies Brand: Vodafone

Description
Additional information

Overview

Form Factor: Router: Indoor
Technology: 3G UMTS / HSPA
Frequency: Bands: UMTS/HSDPA/HSUPA:800/850/900/2100/1900 MHz and GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Carrier: Vodafone
Features:

The Vodafone MachineLink 3G is a compact HSPA+ router for M2Mapplications that provides optimized IP data network access anywherethereﾒs 2G or 3G network coverage.

Vodafone MachineLink 3G features built-in Ethernet for plug-and-play IP connectivity and high-performance internal antennae in a compact and stylish casing, with an optional external antenna connector. Freed from the constraints of a fixed landline connection and designed to work anywhere in the world, the MachineLink 3Gﾒs wide operating temperature range, flexible power-up options and built-in mounting versatility make it perfect for virtually any M2M application.

Please note that the power supply is not included with the unit, unit requires DC power of 5-35 volts @ 6 watts

Specifications

Model Number	Vodafone-MachineLink-3G
Brand	Vodafone
Weight	0.500000
Dimensions	140 x 103 x 30mm
Product Type	Router
Form Factor	Router: Indoor
Technology	3G UMTS/HSPA
Frequency Band (LTE)	Band 1 (2100 MHz)
Carrier	Vodafone
Frequency	UMTS/HSDPA/HSUPA: 800/850/900/2100/1900 MHz GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Temperature	-20° to 65°C
Power	8 to 35VDC
Interface Connector	1x (RJ-45) 802.3af power over Ethernet (PoE)10/100Base-TX port with auto MDIX
RF Connector	2x internal cellular antennae (1x main antenna and1x receive diversity antenna) 1x SMA connector for optional external main antenna (including mechanical RF switch for auto changeover to external antenna)
Operating System Support	Embedded Linux 3.6
ROHS Compliance	yes
Carrier Approvals	Vodafone

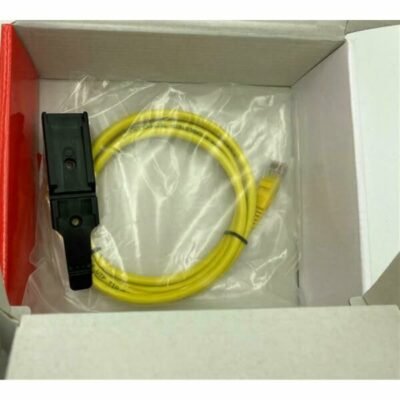

Packing List	1x Vodafone MachineLink 3G router 1x 1.5m yellow Ethernet cable 8P8C 1x DIN rail mounting bracket 1x DC terminal block 1x quick start guide and safety manual
