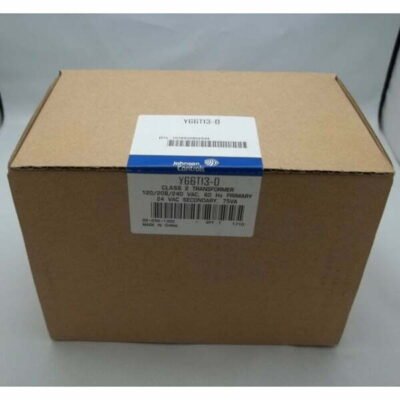

    Johnson Controls 120/208/240-24V 75VA Class 2 Transformer – Y66T13-0

    $99.45

    Johnson Controls – Y66T13 – 0 120 / 208 / 240 – 24V 75Va Foot Mt

    3 in stock

    Make an Offer
    SKU: Y66T13-0 Category: Brand:

    Johnson Controls

    General Purpose Transformers, Y66 Series

    Item# Y66T13-0 – Transformer Ul Class 2; 120/208/240Vac Primary 24Vac Secondary 75Va Ul Cul Listed



    Y66 Series Information
    • Split‑bobbin design provides best primary/secondary isolation
    • Multi‑tap primaries reduce stocking requirements and offer application flexibility
    • Choice of foot, plate, or conduit hub mounting provides mounting flexibility
    • Meets a wide range of power requirements from 24 VAC through 480 VAC
    • Color‑coded lead wires provide simplicity and standardization

    The Y63, Y64, Y65, Y66, and Y69 Series Transformers provide 24 VAC power for loads of 40 VA through 300 VA. These transformers are designed for use on digital controllers, gas controls, ignition systems, motor actuators, staging controls, and most other 24 VAC HVAC/R control systems.

    Specifications

    Item Number:  Y66T13-0
    Brand: Johnson Controls
    Item Category: Transformers
    Subcategory: General Purpose Transformers
    Series: Y66
    Type: Control
    Phase: 1
    VA Rating: 75 Volt-Amps
    Primary Voltage: 120/208/240
    Secondary Voltage: 24
    Enclosed: No
    Primary Fuseholder: Not Available
    Secondary Fuseholder: Not Available
    Mounting: Foot;Hub Mount
    Termination: Wire Leads
    Temperature Range (F): -40 to 104 Degrees F
    Approvals: UL;CSA

    SKU: Y66T13-0

    Weight1.8 kg
    Dimensions20 × 15 × 14 cm
